📦 Downloads

🛠️ MaticStudio IDE

• Latest Version: MaticStudio 100 - 1.3.102
  Download Installer (EXE) CHG-MATICSTUDIO-1-3-102b-setup.exe – Windows 7/10/11, 32-bit & 64-bit, Windows XP, Vista 32-bit
  SHA256 Checksum: 916c3176205e59f331a20871e5929ee033344b4ac69b4cb9691dc64c4278134b CHG-MATICSTUDIO-1-3-102b-setup.exe
  File size: 20.242.500 bytes (19.3 MB) - Requires approx. 40 MB on disk.
• License: Free for personal and professional use. Read License Terms

System Requirements

• Windows XP, Vista, 7, 10, or 11 (32-bit or 64-bit)
• Recommended screen resolution: 1920 x 1080.
• Administrator privileges required for installing and registering components
• Optional: USB-to-RS232 adapter for programming physical NSC devices

📚 Documentation

• MaticStudio 1.3 Manual (PDF)
• Getting Started
• SFBP Protocol Specification

🧱 Virtual Components (COB Files)

These optional extensions add advanced logic, SCADA UI widgets, and functions.
All available COB files, including those from third parties, are already included in the full installation package.

Included:

• COB Pack 1 – Common Components (flip-flop, D-latch, proxy functions, presets, test)
• COB Pack 2 – HVAC & Lighting
• COB Pack 3 – Window and Shutter Controls
• COB Pack 4 – Bulglar Alarm and Security, Special functions

🧰 Developer Tools - NSC OS SDK & AppWizard

NSC OS SDK (without interpreter)

• NSC OS AppWizard + SDK for AVR-GCC (EXE installer - full) CHG-NSCAW-1-1-40-setup.exe – For advanced firmware development in C
  Windows 7/10/11, 32-bit & 64-bit, Windows XP, Vista 32-bit
  SHA256 checksum: ec1737c73f481fe1f017ad2f9a9eb3f467d06e62203e1ebd195c521567b2f0ec CHG-NSCAW-1-1-40-setup.exe
  File size: 3.847.397 bytes (3.66 MB).
• AVR-GCC toolchain from the official Microchip website

🧾 Notes

• ⚠️ After installing, USB-to-serial adapters may require driver updates.
• 💡 All components are 32-bit but compatible with 64-bit Windows.

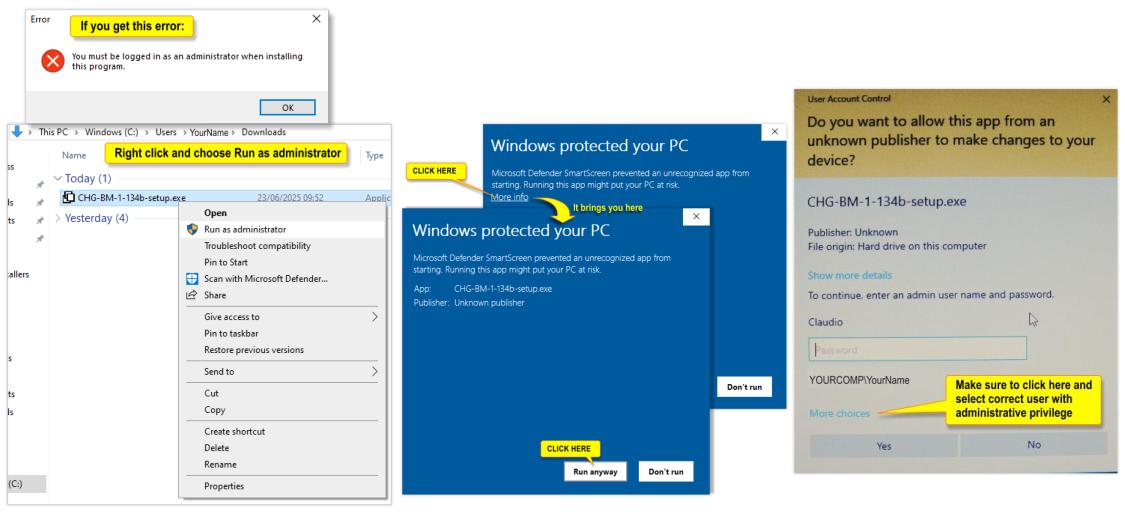

• 🔐 This software is not digitally signed. You may need to approve the installer manually (see image below).
