Where to Buy

Although the original manufacturer has ceased operations, Hexel Electronics ensures ongoing support by offering spare parts and repair services for existing and new NSC hardware.

Spare Parts & Repairs

Provided by Hexel Electronics
Via del Lavoro - Trissino, Italy - EU

How to Order
  • Website: hexel.it
  • Email:
  • Phone: +39 324 9015 265
  • Whatsapp: (chat available in English)

Pick the model from the list below, the number of pieces required, and contact Hexel for availability & pricing. For technical support, contact us.

Products

Unless otherwise specified all controllers can be programmed across the network field bus, even in bulk, using MaticStudio.
All controllers can also be programmed via ISP with NSC OS (without interpreter, for more information see NSC OS SDK + AppWizard).
Unless otherwise specified, all logic inputs accept up to 30V and able to withstand in an industrial environment with max wire length of up to 5 m (16 ft), or up to 20 m (67 ft) in commercial buildings.
Unless otherwise specified inputs are not optoinsulated. Unless otherwise specified open collector outputs require a diode if an inductive load (like a relay) is attached to them.
*Current peak is referred to a very short peak such as those caused by inductive and slightly capacitive loads, example HIV lamps.
More information about general specifications and documentation.

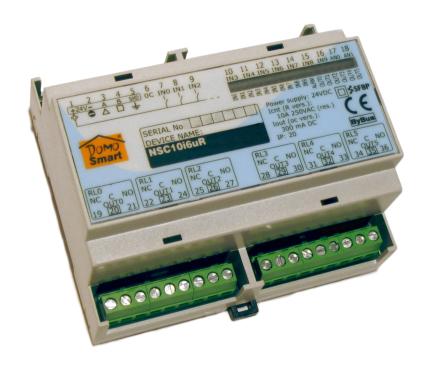

NSC +i Based Controller. Programmable via field bus.
Model NSC106RHW: 10 logic inputs; 2 inputs for digital 1wire thermal sensor or analog 5V (autodetect); 6 x 16A (200A peak*) 250VAC relay outputs.
Model NSC103RHW: like NSC106RHW but has only 3 relay outputs.
Model NSC103RHWC: like NSC106RHW + RTC (Real Time Clock) on board.

Model NSC103R: 10 logic inputs; 2 analog inputs; 6 x 8A 250VAC relay outputs.

Clamping for DIN rail EN 60715 / EN50022; dimensions 106x90x57mm 6 modules DIN 43880.
Dual mode power supply 12/24V.
  • DomoSmart NSC106RHW (6 relays)
  • DomoSmart NSC103RHW (3 relays)
  • DomoSmart NSC106RHWC (6 relays + Chrono)
  • DomoSmart NSC106R (6 x 8A relays) - Discontinued, subject to availability.
  • Datasheet
NSC +i Based Controller. Programmable via field bus. 8 logic inputs; 8 Open Collector 40V 300mA logic outputs; dimensions: 50 x 68 x 14 mm. Dual mode power supply 12/24V.
  • DomoSmart NSC8i8u oc
  • DomoSmart NSC4i4u oc discontinued. It can be replaced with the model above.
  • Datasheet (Italian)

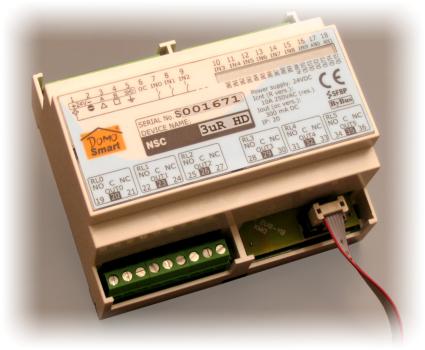

NSC +i Based Controller. Programmable via field bus.
Model NSC103RHD: 10 logic inputs; 2 inputs for digital 1wire thermal sensor or analog 5V (autodetect); 3 x 16A (200A peak*) 250VAC relay outputs; 3 dimmer-driver channels.
Remark: Requires one DGTDMR unit per channel to actuate dimmers.

Model NSC103RHM: 7 logic inputs; 1 ABZ encoder input (up to 5KHz); 2 analog inputs up to 5V; 3 x 16A 250VAC relay outputs; 2 PWM/analog output.
Suitable for motor control with speed and current limit, 2+2 quadrants: direction switched with relays. Requires external power driver.

Clamping for DIN rail EN 60715 / EN50022; dimensions 106x90x57mm 6 modules DIN 43880.
Dual mode power supply 12/24V.

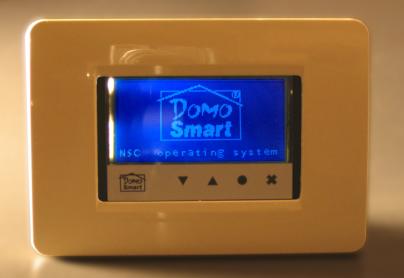

NSC +i Based Controller with display. Programmable via field bus.
128x64 display; 4 keys; 3 logic inputs; 2 logic open collector outputs; 1 analog input; one DS1820 thermo sensor on board; automatic backlight; blue-white display.
Dual mode power supply 12 to 24V.

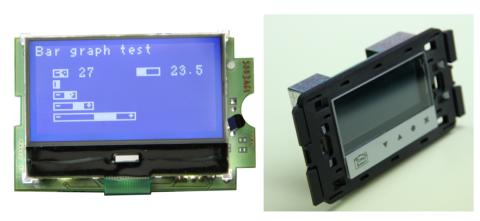

Controller with display - bare board. Must be programmed via ISP with NSC OS (without interpreter).
  • 128x64 display, automatic backlight; blue-white display
  • 4 keys; 3 logic inputs or 7 inputs (no keyboard) or 12 keys keyboard and zero inputs
  • 2 logic open collector outputs; 2 analog inputs or 1 analog input and internal DS1820 thermo sensor
  • 2 interrupt inputs (only for bulk orders)
Dual mode power supply 12 to 24V.
  • LCDG128-bare

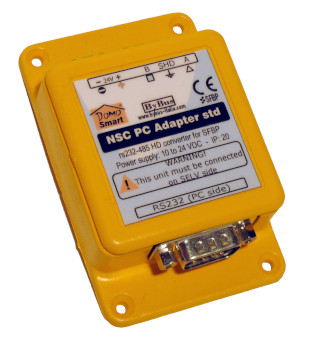

RS232 - SFBP RS485 adapter. Power supply: 12 to 24V.
  • PC Adapter std
    Note: Requires cross cable.
  • Datasheet

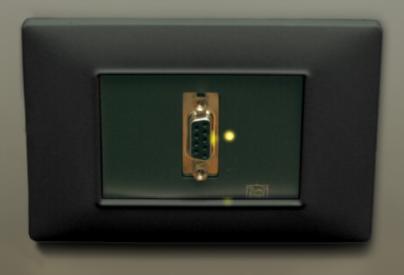

RS232 - SFBP RS485 adapter - wall mounting. Power supply: 12 to 24V.

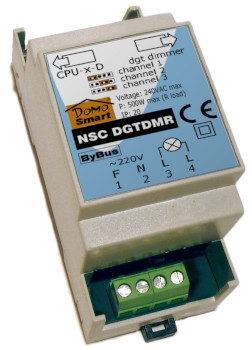

Dimmer power actuator. Phase Fire Control (phase partialization) for NSC103RHD.
Channel selectable with jumpers.
  • DGTDMR
    (Subject to availability, only as spare part)
  • Datasheet (Italian)
Current transformer 25A with DC output, 2 levels of sensitivity.
  • TA25
    (Subject to availability)

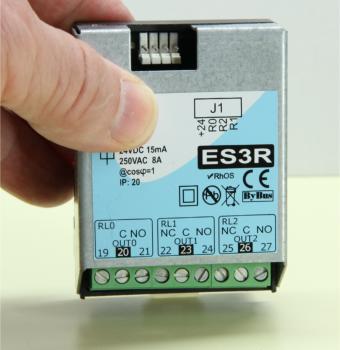

3 Relay actuator, for open collector outputs.
Relays: 8A 250VAC.
  • ES3R (subject to availability)

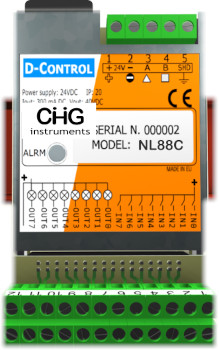

NSC +i Based Controller. Programmable via field bus.
Versions:
  • NSC88C: 8 logic inputs; 2 inputs for digital 1wire thermal sensor or ROM button; 8 Open Collector 40V 300mA outputs;
  • NSC88A: 8 analog inputs; 8 Open Collector 40V 300mA outputs;

Clamping for DIN rail EN 60715 / EN50022; dimensions: 50 x 68 x 34 mm.
Dual mode power supply 12/24V.
  • D-Control NSC88C
  • D-Control NSC88A

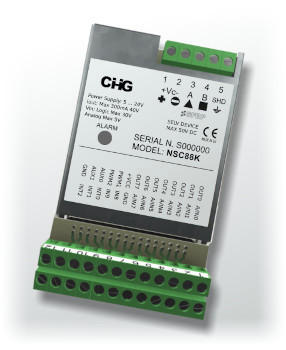

Multifunction Controller.
Must be programmed via ISP with NSC OS (without interpreter).

8 analog (5V)/logic (24V) inputs (selectable), 8 logic open collector outputs, 2 logic inputs, 3 interrupt inputs, 2 PWM outputs 5V, 2 assignable I/O (5V)

Power supply from 5V to 24V.
Based on the ATmega32 microcontroller.
  • NSC88K

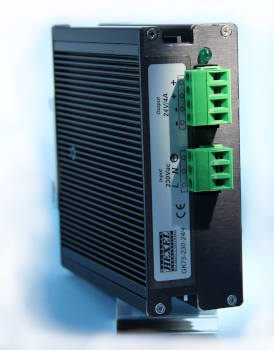

Power supply industrial grade.

Input: 230V AC 50 Hz or 60 Hz; Output: 24V DC 4 A (model 4-24) or 24V DC 2 A (model 2-24)

Optionally available for high capacitive load.
  • HX-PSU-4-24
  • HX-PSU-2-24
